"8" Inch 3d Printed Pressure Safety Valve Model (W-PSV-08)

Description

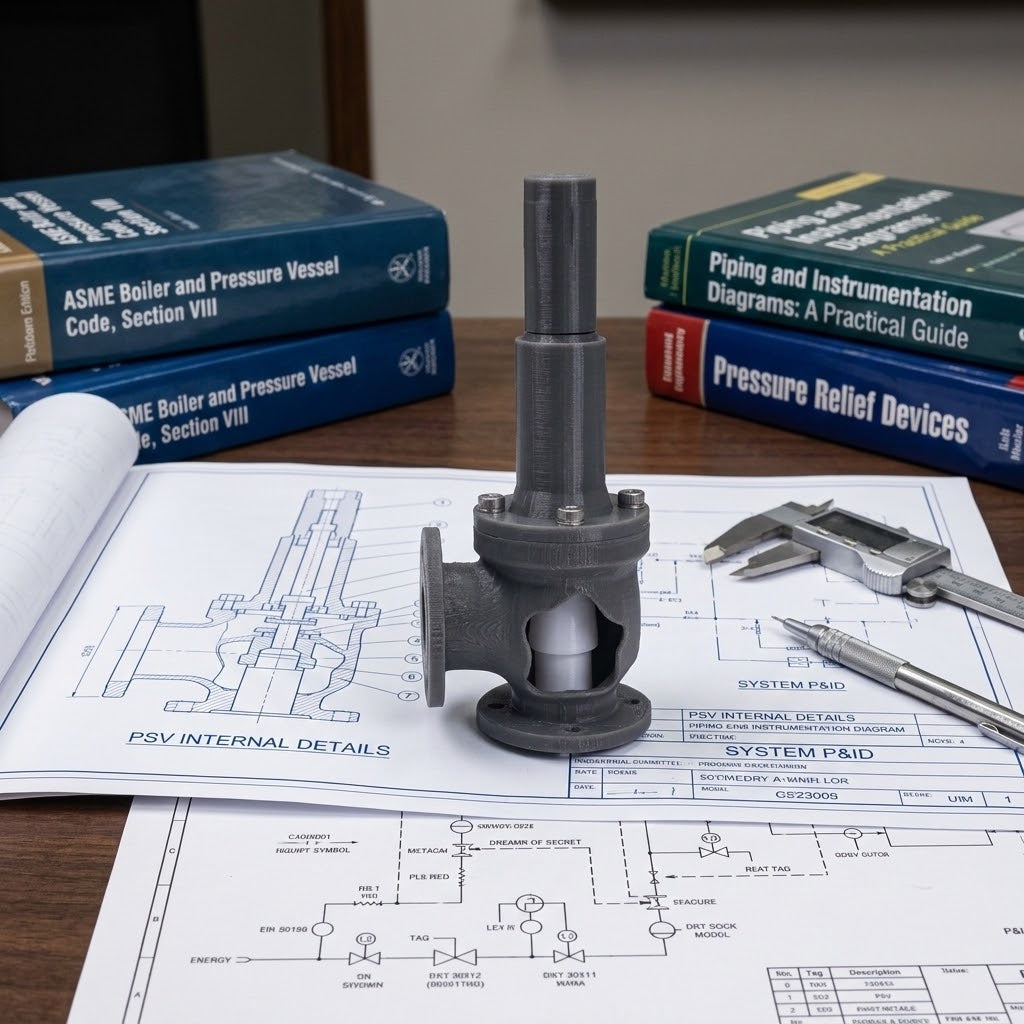

Looking for a great desk, conversation, or teaching piece? This is it! This PSV comes as a kit or assembled (at an additional cost).  It's approximately 1.75" in width and 4" tall after it's assembled. This Pressure Safety Valve can also be mated to any of our "8" inch connections of our equipment or piping. You will need (4) M3x12 and (4) M3 Nuts to mate it to the other connections.

If you choose the kit, it should take 15-20 minutes to put together and comes with everything you need to build miniature model pressure safety valve. It makes a great desk or display piece!

This kit comes with the following parts:

(4) M3X8 BOLT (M)
(2) ALIGNMENT PIN (V)
(1) M3X50 BOLT (Y)
(1) BONNET (DD)
(1) SPRING (EE)
(1) DISC & DISC HOLDER (FF)
(1) BODY HALF 1 (GG1)
(1) BODY HALF 2 (GG2)
(1) CAP (HH)
(1) NOZZLE (JJ)

NOTES:

These are scale model piping and components. The number in quotations is what the component is scaled for. For example "2" means it is scaled as 2 inch, "8" means it is scaled as 8 inch, "16" means it is scaled as 16 inch, etc.

These are 3d printed products. 3d printed parts often have inconsistent surface finishes that include irregular surface patterns, small bumps, zits, and blobs, jagged lines, rough corners, and stringing ("spider webs"). While we do our best to minimize and even eliminate most of these issues, they are normal and should be considered when purchasing 3d printed products and parts.
