Shell and Tube Heat Exchanger Model (W-STHX-01)

SKU:508
Regular price $82.00 USD
Sale price $82.00 USD Regular price
Sale Sold out
Only 10 units left

Description

Looking for a great desk, conversation, or teaching piece? This is it! It comes as a kit or  assembled (at an additional cost).  It's approximately 10" in length and 5" in tall after it's assembled.

If you choose the kit, it should take 60 - 90 minutes to put together and comes with everything you need to build and display your shell and tube heat exchanger. It makes a great desk or display piece! The Shell Flanges are press-fit design so they can be easily removed for show and tell! These can also be customized (for an additional cost) using various different colors, as well as modifying the data plate to have your logo on it! The piping is not included but can be purchased separately.

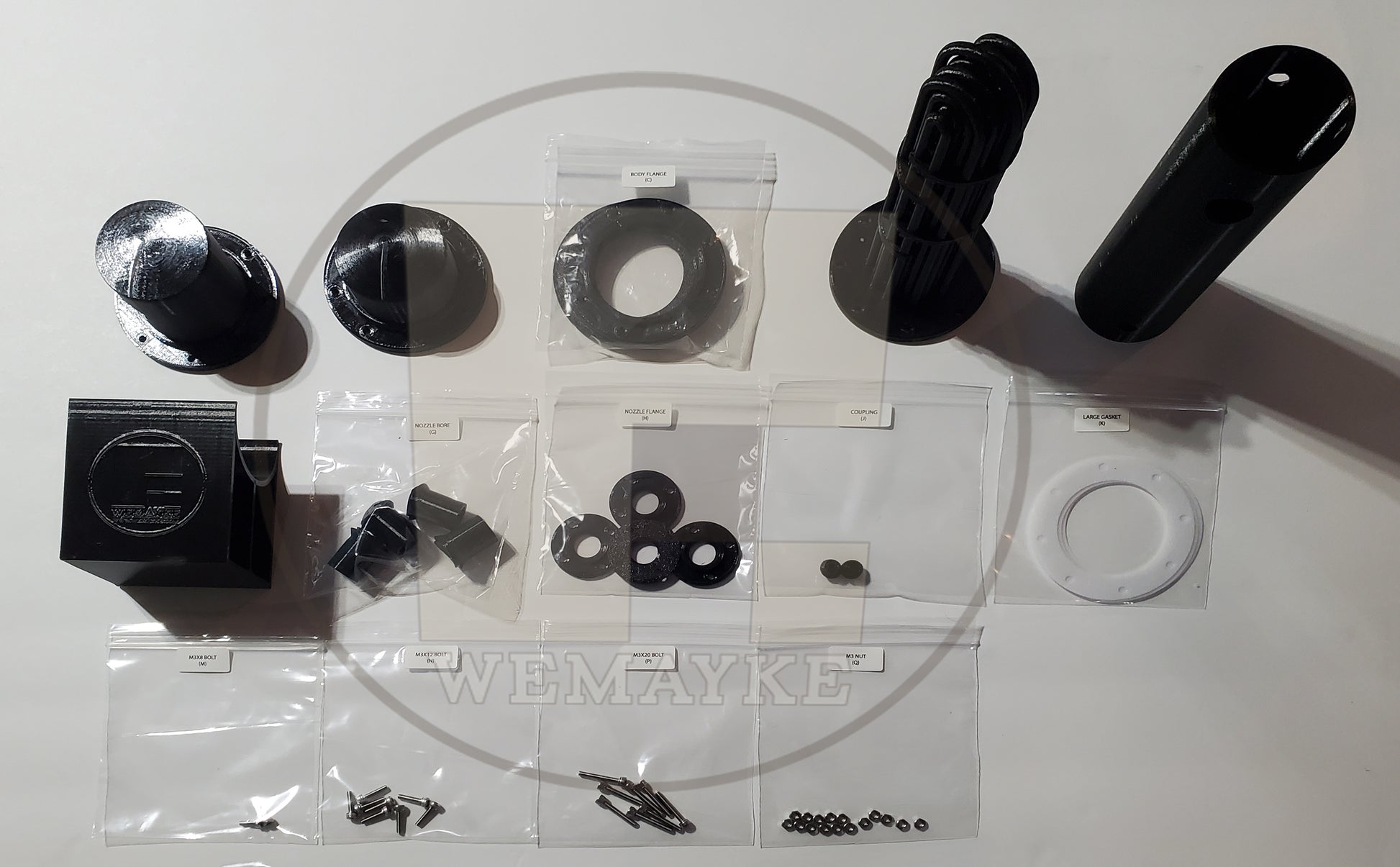

This kit comes with the following parts:

(1) CHANNEL HEAD (A)
(1) RETURN HEAD (B)
(2) BODY FLANGES (C)
(1) TUBE BUNDLE (D)
(1) SHELL (E)
(1) HEAT EXCHANGER BASE (F)
(4) NOZZLE BORES (G)
(4) NOZZLE FLANGES (H)
(2) COUPLINGS (J)
(3) LARGE GASKETS (K)
(2) M3X8 BOLTS (COUPLING PLUG) (M)
(8) M3X12 BOLTS (N)
(8) M3X20 BOLTS (P)
(17) M3 NUTS (Q)



NOTES:

Just in case you have sausage fingers like me, I have included an extra nut in the kit. Most joints are press-fit but Super glue is included with the kit in case you need it or want it permanent.

These are 3d printed products. 3d printed parts often have inconsistent surface finishes that include irregular surface patterns, small bumps, zits, and blobs, jagged lines, rough corners, and stringing ("spider webs"). While we do our best to minimize and even eliminate most of these issues, they are normal and should be considered when purchasing 3d printed products and parts.
